    Electric Yacht Offers a complete package designed to make an electric repower as easy and straight forward as possible:

    • uses state of the art permanent magnet ac (PMAC) motors and vector motor controllers, maximizing efficiency across the entire operating envelope.
    • offers adjustable regeneration that can be optimized to your boat, propeller and sailing conditions.

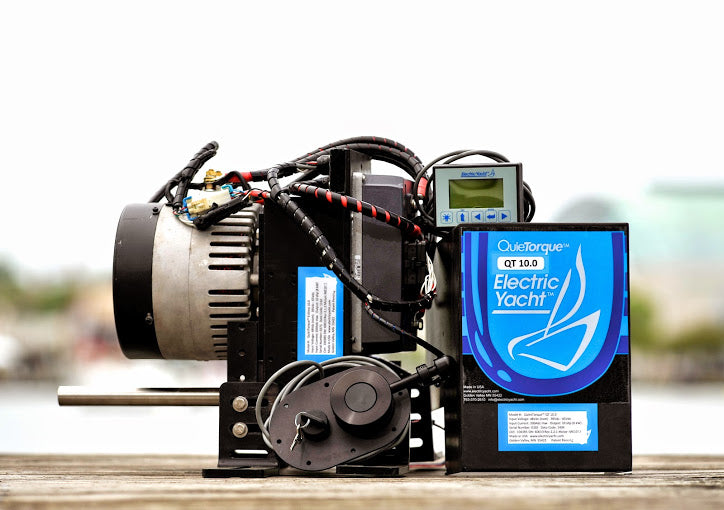

    The QuietTorque™ 10.0 is recommended for boats up to 35’ (LOA) and 12,000lbs displacement. Typically, replacing diesel engines in the 15-20 hp range. It has a maximum input power of 10kW powered by a 48Vdc battery bank. Typical battery size is 200Ah or more at 48Vdc.

    The kit is very complete and includes everything you will need except batteries, battery cables and charger. Contact us to help you design a complete system to meet your particular needs.

    Like the QuietTorque™ 10.0, the QuietTorque™ 10.0 Sport is a plug-n-play system providing 48v (low voltage) electric propulsion with high sustained output and is ideal for coastal cruisers and day sailors. Typically, the QuietTorque™ 10.0 will replace a 15 to 20hp diesel engine. By using a PMAC (Permanent Magnet AC), Electric Yacht can produce this powerful, compact, Plug-n-Play, light weight, air cooled system.

    Typical battery size is 200Ah or more at 48Vdc. These systems can be installed by a competent boat owner using simple tools and the easy to mount Electric Yacht system. To be prudent, we recommend that an ABYC certified marine electric technician review the completed system. Each system is engineered for your boat to maximize the speed and range of the boat.

    QuietTorque™ 10.0 Sail Drive is perfect for new build or repower. Installs in place of existing saildrive with little or no modification to the hull. Typical battery size is 200Ah to 300Ah at 48Vdc.

    Part Numbers:

    • QT-10 E-Drive: QT-10.0
    • QT-10 Sport: QT-10.0 Sport
    • QT-10 Sail Drive: QT-10 SD

    Standard Features

    Motor Mounts
    Adjustable Mounts to current engine stringers
    Throttle Anodized AI waterproof throttle with key & neutral lock
    System Monitor
    High capacity programmable monitor
    • State of charge
    • Voltage, Current draw, RPM, battery type
    • Instant and accurate
    • Distance to discharge
    • Programmable regeneration
    • Throttle direction and throw
    Shaft coupler
    Stainless steel coupler milled to match prop shaft
    Power Switch
    Blue Sea two position switch
    Relay 500amp vacuum Tyco relay
    Fuse Class-t fuse & holder

    Note 1: In selecting the correct size electric motor, in areas with strong tides and currents, choose the next larger size motor. If your boat is heavy for its length, size up too. When in doubt, give us a call.

    Please note: Due to the way this item ships it is impossible to calculate shipping online.
    When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.

    Electric Yacht QT-10:
    QT-10 Sport Datasheet
    QT-10 Sail Drive Datasheet

    QT-10 Drawing
