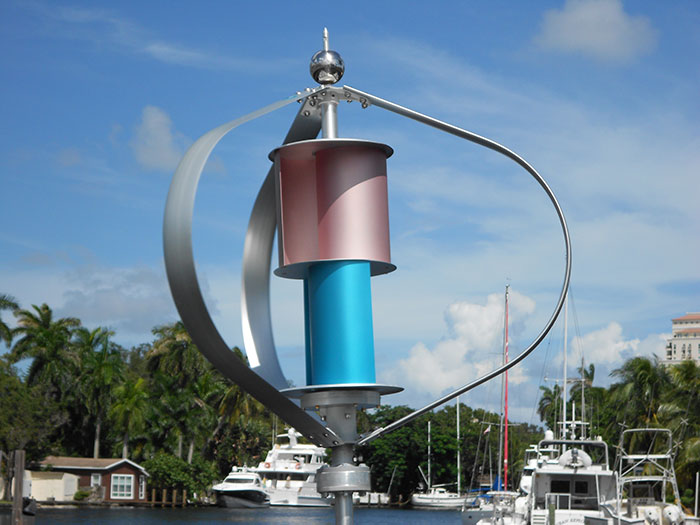

• Maglev 300W Vertical Axis Wind Turbine System CXF-300 - WGT10312A
  • Maglev 300W Vertical Axis Wind Turbine System CXF-300 - WGT10312A
  • Maglev 300W Vertical Axis Wind Turbine System CXF-300 - WGT10312A
Price: $1,598.00
SKU: WGT10312A
Brand: Typmar
    Typmar Mount Kit:

    Update price
    Quantity:

    The CXF–300A is a vertical axis wind turbine (VAWT) system which combines drag and lift-based design together. It incorporates an S-type Savonius rotor and three Darrieus airfoil blades to maximize the output performance. The vertical load floats on a magnetic field minimizing drag resistance increased performance plus isolating mechanical rotation vibration into the boat hull. This unique aesthetically pleasing wind generator provides excellent performance on a boat because of its ability to operate on winds coming from any direction. Its low rpm makes it very quiet. The included controller also accepts solar PV input making it easy to expand the renewable energy system.

    Specification

    Rated Power 300W
    Wind wheel diameter 1.23M/1.09M
    Weight 59.5 lb/27KG
    Blade Material Aluminum Alloy
    The number of blade 3
    Minimum wind speed start 1m/s (2.24mph)
    Minimum power wind speed 2.7m/s (6.04mph)
    Rated wind speed:
    12m/s (26.84mph)
    Maximum cut off wind speed 15m/s (33.55mph)
    Resistant to wind speed limit 65m/s (145.40mph)
    The type of Generator
    Three-phase AC maglev wind turbine
    Controllor output voltage 12V
    Controllor output current <20Amp
    Controllor brake system
    Over speed automatic Three-phase
    Short-circuit braking
    Normal operating temperature
    -40~50 ℃

    Purchase Options

    Turbine (WGT10312A) includes:

    • Typmar CXF-300/12V Wind Generator
    • External MPPT Controller (Wind and Solar)

    Turbine w/Complete Stern Mount Kit (MKW46100A) includes:

    • Typmar CXF-300/12V Wind Generator
    • External MPPT Controller (Wind and Solar)
    • Tower Kit includes mast, stainless steel stays, and SS mounting hardware kit
    • Stop/Run Switch Kit Makes for easy access Stop/Run control of the Wind Turbine
    • 40' of 10-4 wire, through-hull fitting, fuse holder, fuses, tye wraps, crimps and other related necessary installation parts
    Optional Accessories
    Stop/Run Switch Kit A neat Stop/Run Switch with Name Plate for easy control of the Wind Turbine.
    Tower Kit includes mast, stainless steel stays, and SS mounting hardware kit.

    Please note: due to the way this item ships it is impossible to calculate shipping online.

    When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.
