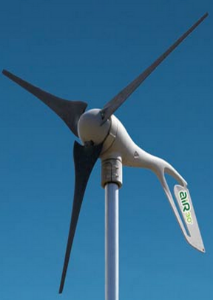

Air 30 Small Wind Turbine Land 48V manufactured by Primus Windpower is designed to withstand very high wind produce optimum energy in remote environments.
AIR 30 Land Wind Turbine can be used for SCADA, telecom, security, cathodic protection in the most demanding conditions.
If you are interested in boosting the Air 30 Small Wind Turbine performance, then you need to select the Blue Blades option from the radio buttons above.
The Blue Blades are hand laid carbon fiber blades that are balanced into a set providing maximum energy harvest from the wind while operating with minimum vibration and very low noise.
Air 30 Land 48V Wind Turbine Specifications:
Energy |
Approx. 30 kWh/mo at 5.8 m/s (13 mph) |
Swept Area |
1.07 m2 (11.5 ft2) |
Rotor Diameter |
1.17 m (46 in) |
Weight |
5.9 kg (13 lb) |
Shipping Dimensions |
686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
Startup Wind Speed |
3.58 m/s (8 mph) |
Voltage |
12, 24 and 48 VDC
|
Turbine Controller |
Mircoprocessor-based smart controller |
Body |
Permanent mold cast aluminum |
Blades |
(3) Injection-molded composite |
Alternator |
Permanent magnet brushless |
Overspeed Protection |
Electronic torque control |
Survival Wind Speed |
49.2 m/s (110 mph) |
Mount |
1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
Wind Speed Operating Range |
3.6-22 m/s (8-49 mph) |
Optimum Wind Speed Range |
11-15 m/s (25-32 mph) |
|
|
Air 30 Land Wind Turbine Certifications:
- Restrictive of Hazardous Substances (RoHS) Compliancepoint
- Canadian Standards Association (CSA) International Certificate of Compliancepoint
- CE Declaration of Comformity (for battery charging applications only)
