Magnum MSH3012M 3000W 12V Pure Sine Wave Inverter
Regular price
$2,334.11
Sale price
$2,334.11
Regular price
$3,112.15
Unit price
per
IVM23010
MSH3012M-L
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability

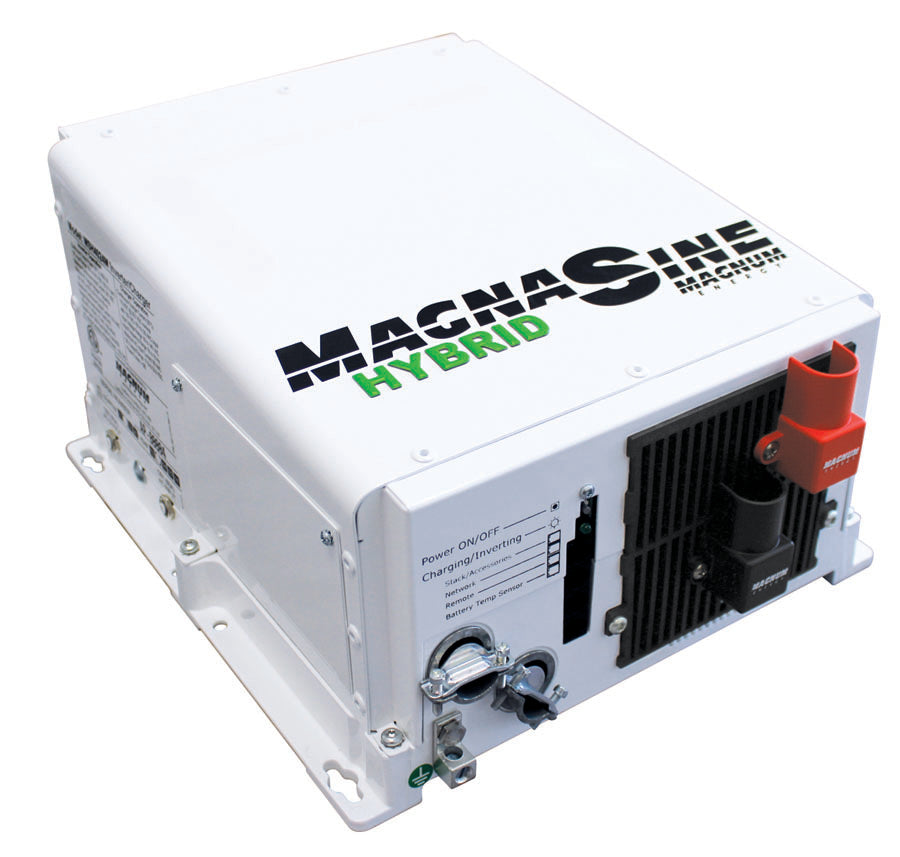

Magnum MSH3012M MagnaSine Hybrid 3000W 12V– Mobile inverter/chargers from Magnum Energy.
Magnum MSH3012M is a "hybrid" pure sine wave inverter intended to be used for land vehicles (RVs or trucks) or marine craft such as boats and yachts.
MSH3012M MagnaSine Inverter/Charger Features:
- 120 VAC / 60 Hz output
- 60 amp AC input and pass-thru capability
- Load Support parallels the inverter output with incoming AC sources allowing it to run larger loads from smaller generators
- Works with any Magnum accessory, including the AGS, remotes, and the Magnum router
Note: The MSH-M Series inverter/charger provides the Load Support feature. Older remote revisions will work with the MSH-M Series. However, to view the Load Support status the following remote revisions are required:
- ME-RC ≥ Revision 2.7
- ME-ARC ≥ Revision 3.0
- ME-RTR ≥ Revision 3.0
Manufacturer Part # MSH3012M
Specifications
| Output Power | 3,000W |
| Peak Watts | 3,900W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 25.0 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 12 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 90.0% |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 9 to 17 |
Datasheets and Manuals
